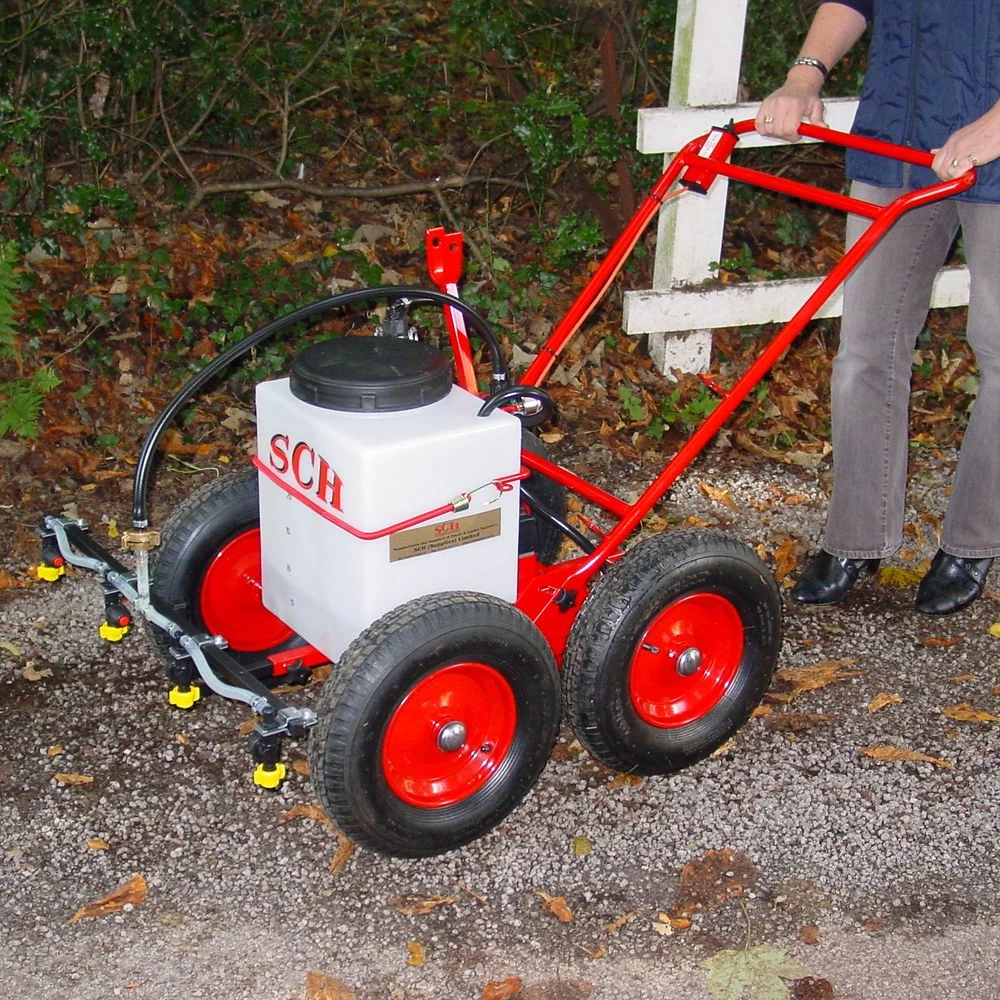

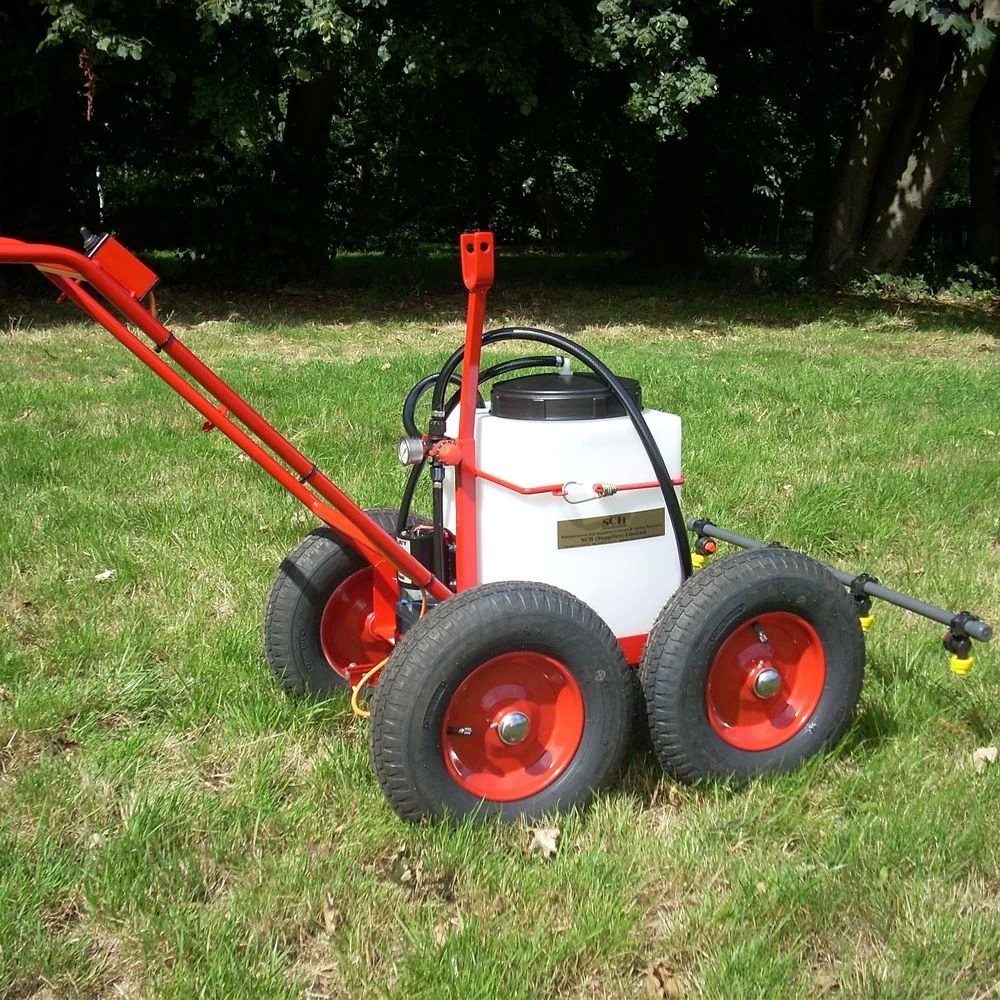

SCH PSP 30 Litre Rough Terrain Sprayer – Push Or Towed – Spray Width 36″

The PSP power sprayer from SCH has proved to be a very popular unit, versatile and simple to operate unit, most commonly used on paddocks and woodland pathes where navigating over exposed tree roots is common.

In response to customer demand, SCH has adapted this sprayer for use on rough, uneven ground with the addition of four large (400 x 8) wheels. Equipped with these wheels, towing facilities can still be used.

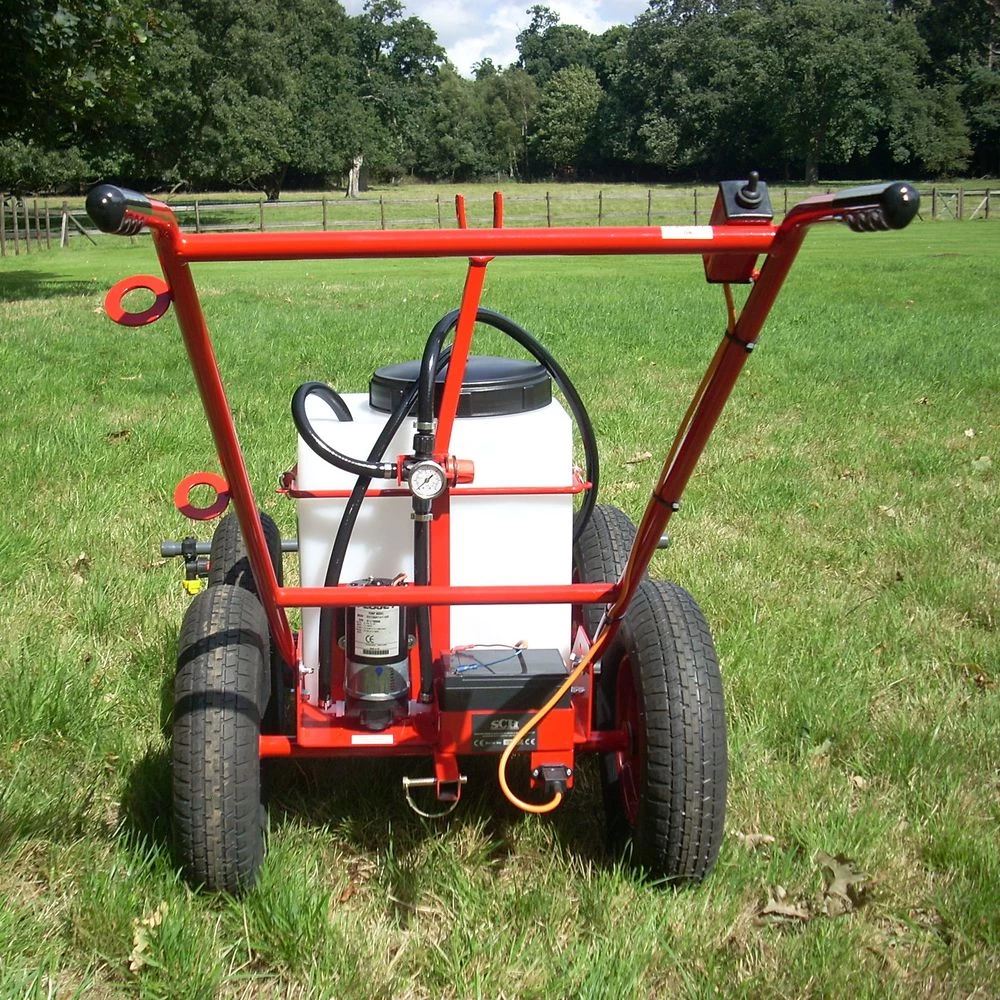

The rough terrain sprayer is mounted on a robust tray chassis. The pump is a 12 volt diaphragm pump powered from its own integral battery, which a charger supplied. The pump is run on a pressure system which means that when the spray is shut off the pump shuts down, similarly open and the pump restarts.

Typically the average spray time per battery charge is around five hours normal spray use (3.5 hours intermittent), for continuous spraying so on/off time, refill and movement actions will enhance the overall spray time.

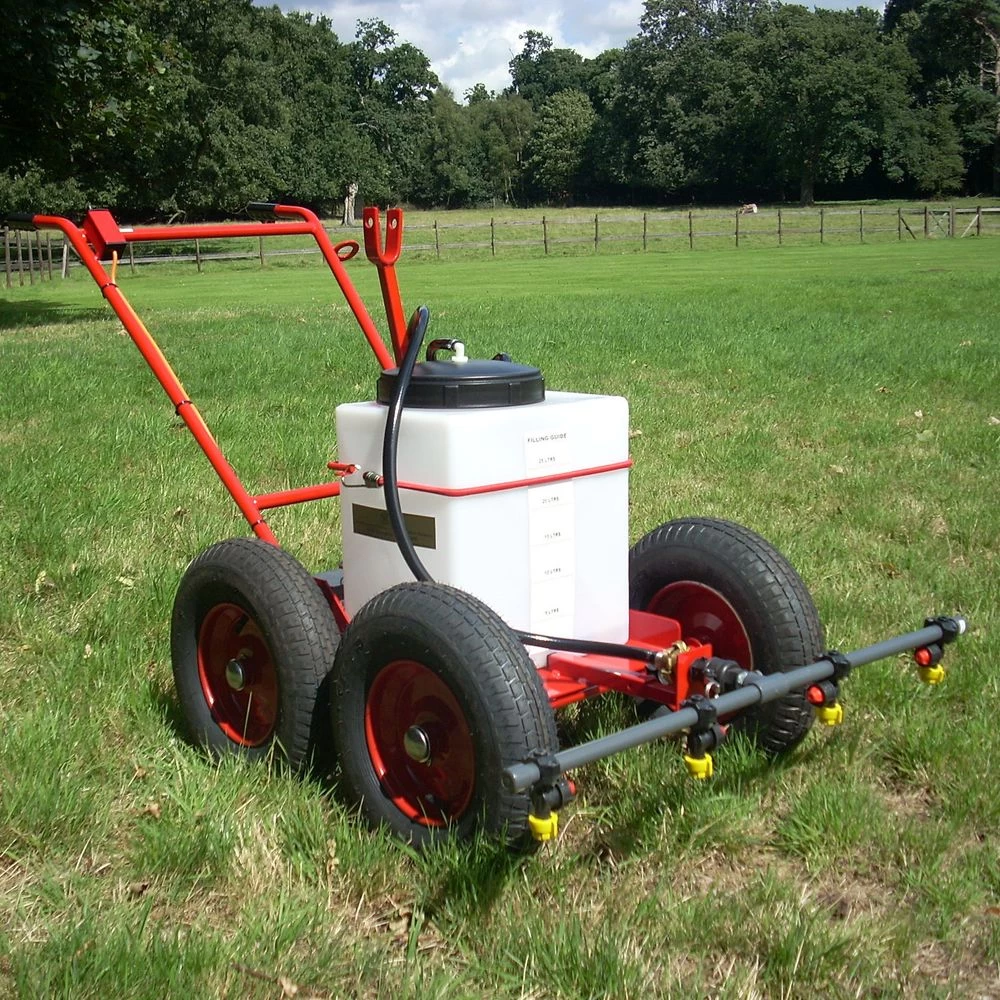

The low to ground four nozzle boom minimises drift and therefore close-to-edge work can be carried out. A brass trigger lance is supplied for spot spraying. A pressure gauge and a by-pass regulator are fitted for the hand lance.

Each wheel is similar to those found on a wheelbarrow, for exceptional flotation and stability on rough and marshy ground.

The handles on the sprayer are adjustable to suit the operator. A tow bar is also supplied with each machine.

Optional extras available include:

• Spray boom cover
• Dribble bar
• Exention to the brass hand lance
• Delivery hose
• Wider spray coverage booms
• Pumps up to 18lpm output can be fitted
